I built my own XM Satellite Radio receiver!

Hello,

This is a project I have had in the works for a few months now. I have designed and built my own XM Satellite Receiver.

The photos below show how it is coming along. This is a work in progress, not all of the software is done yet.

This is in no way designed to bypass any security! It still required activation like all other radios.
Please don't ask any 'how do I get XM for free' questions. I don't know how, and if I did I wouldn't tell.

Here is a list of features:

- Capable of receiving all XM channels.
- Operates on an 8-40 volt DC input. Wall wart at home, cigarette lighter plug in car.
- Fully compliant USB interface. Will operate with the stock software and the popular alternates. It can operate as a second receiver with another XM PCR connected.
- Serial interface that is independent of the USB. When a serial cable is connected, the radio defaults to serial. When the serial cable is removed it falls back to USB.
- The radio has a simple web server embedded inside that allows operation over a network, LAN or WAN. This radio does not stream or record any content.
- TOSLINK optical output.
- COAXIAL digital output.
- 1/8" audio connection.
- Dual RCA audio connection.
- Real time clock with alarm function.
- Video display of current channel information. Video can be stand alone in color, or overlay in black and white on an incoming video signal.
- Operates with the SKYFI or ROADY remote.
- At the press of a button the radio will speak the current artist and title. If using a SKYFI remote, the radio can also verbally spell the current channel info.
(SKYFI remote has an extra button)
- Power button is a three color back lit graphic LCD switch.
- 16 button Keypad for local control.
- 256 x 64 Graphic Vacuum fluorescent display.
- Rack mountable or Stand-alone (As Shown)

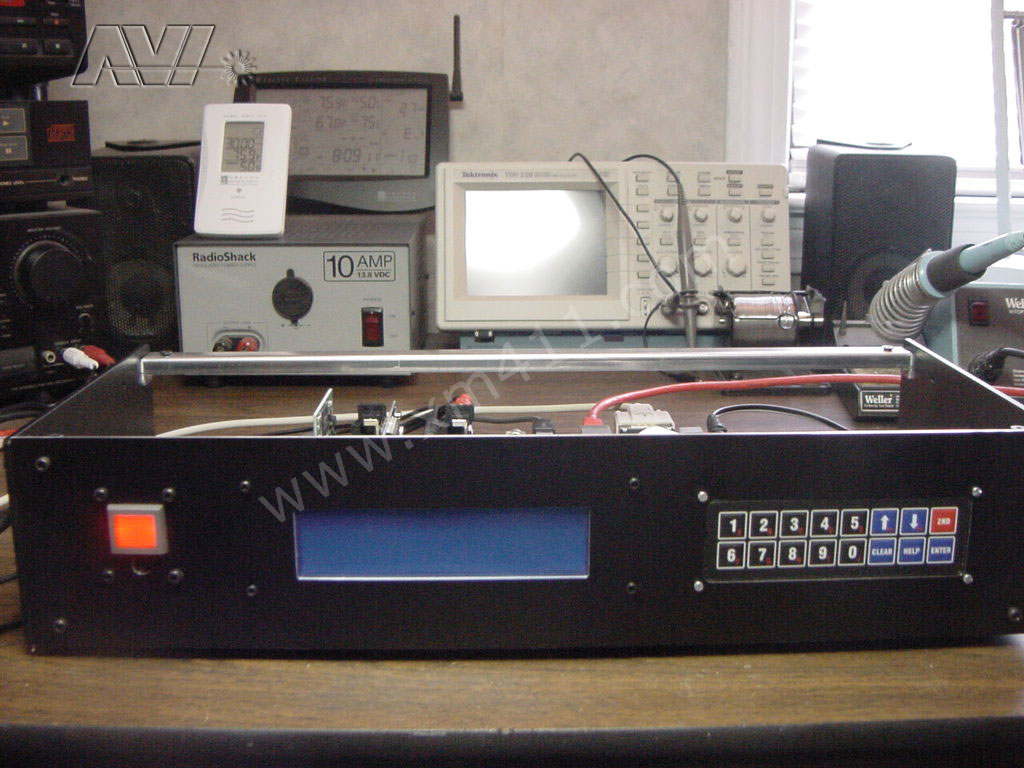

The first picture shows the Radio in its case. This is not finished but you get the idea.

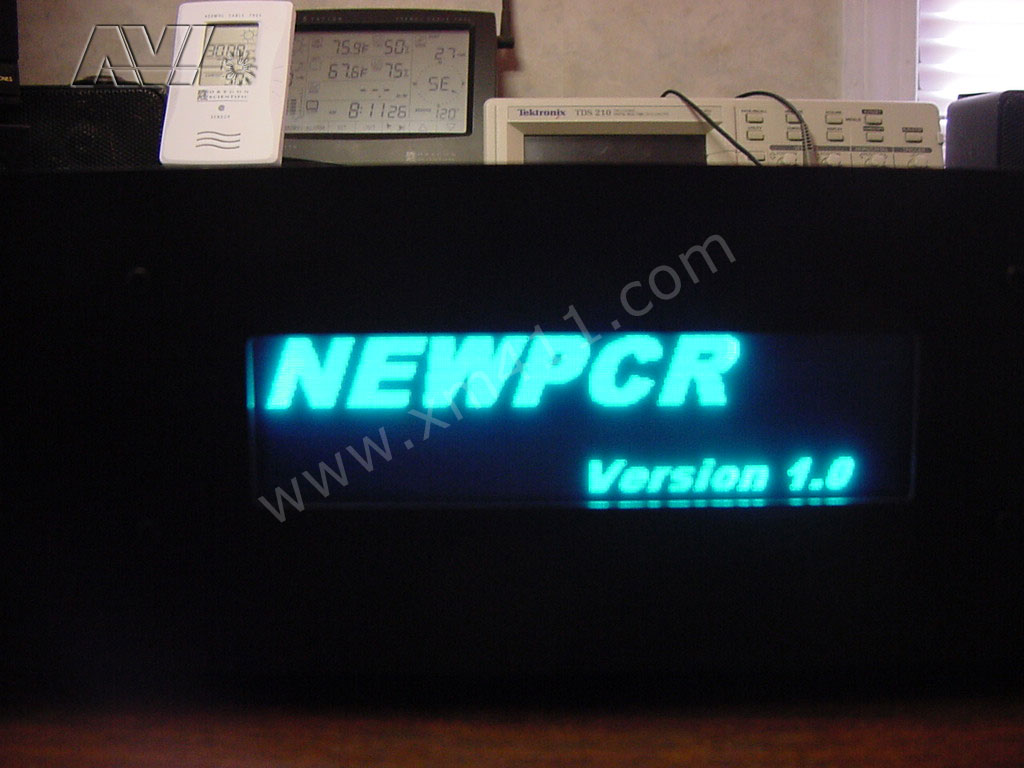

Logo that displays at power up.

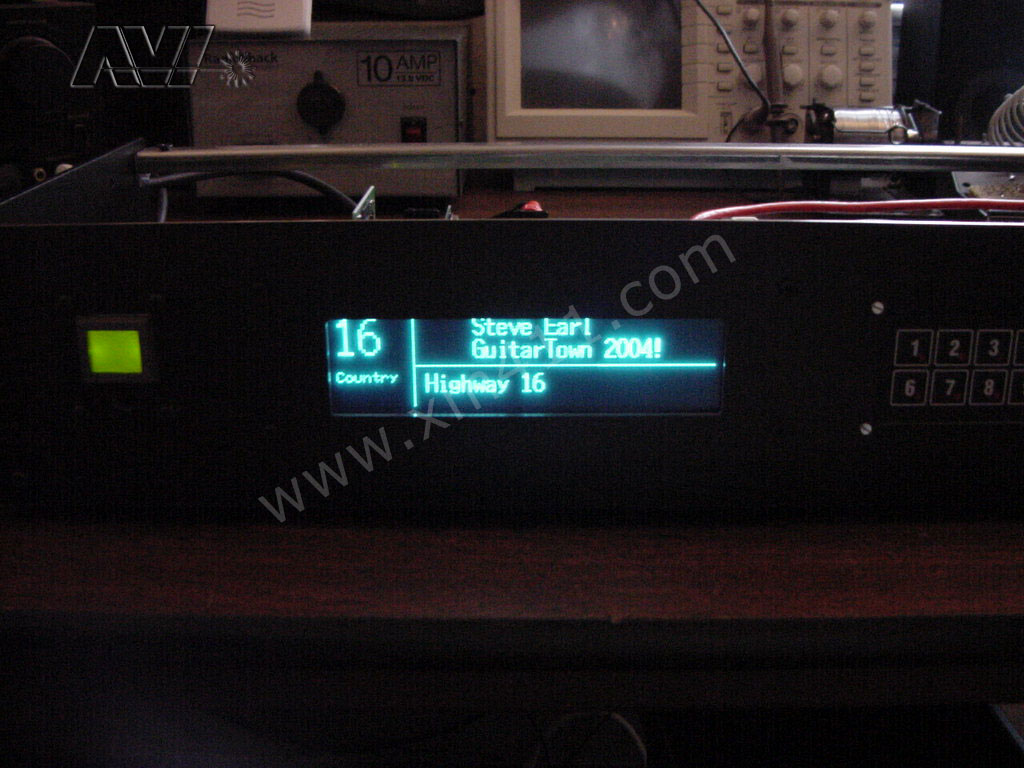

One of the display modes in normal operation.

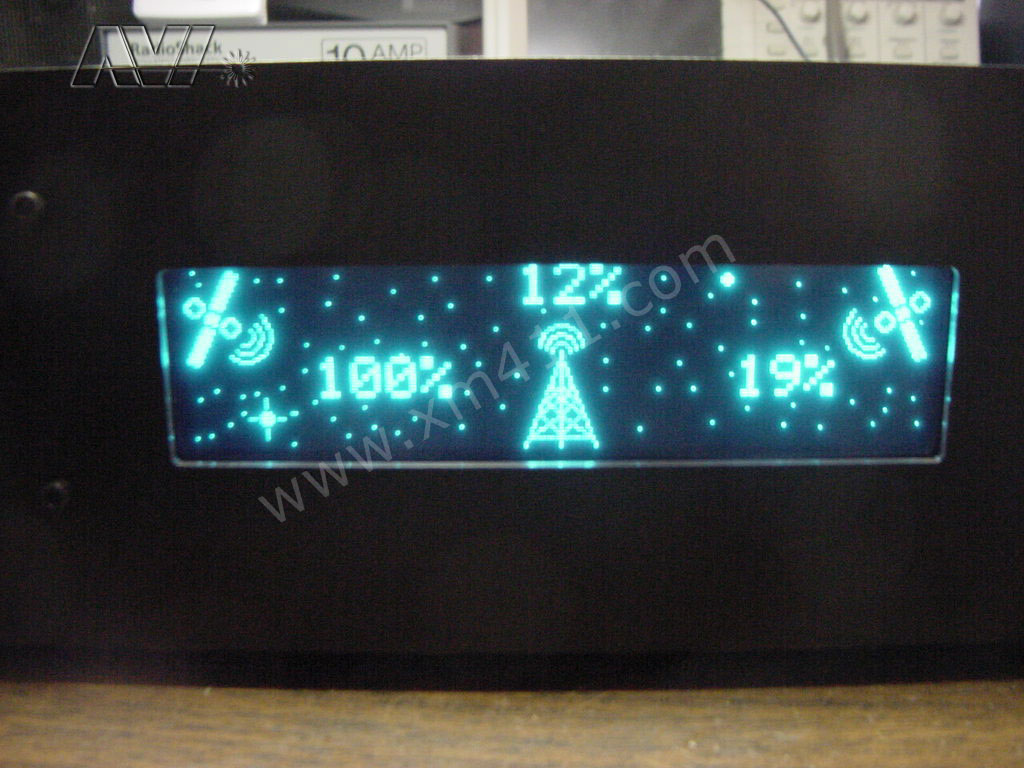

Signal strength screen.

Connected and running on serial with ethernet, TOSLINK and dual RCA connected.

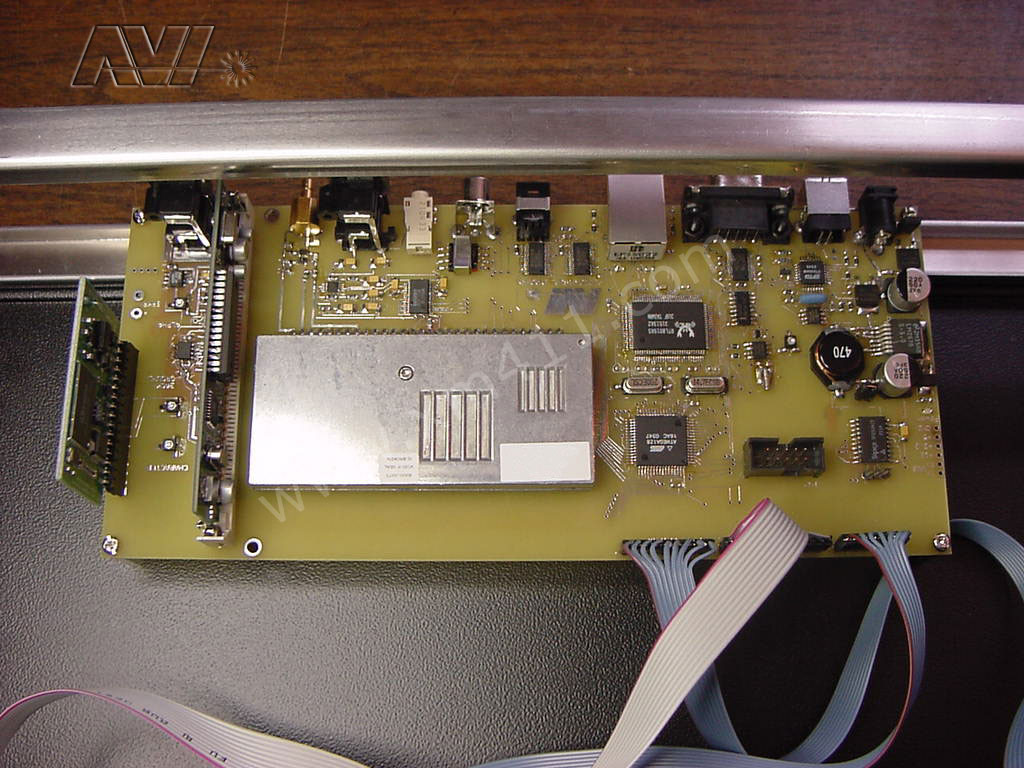

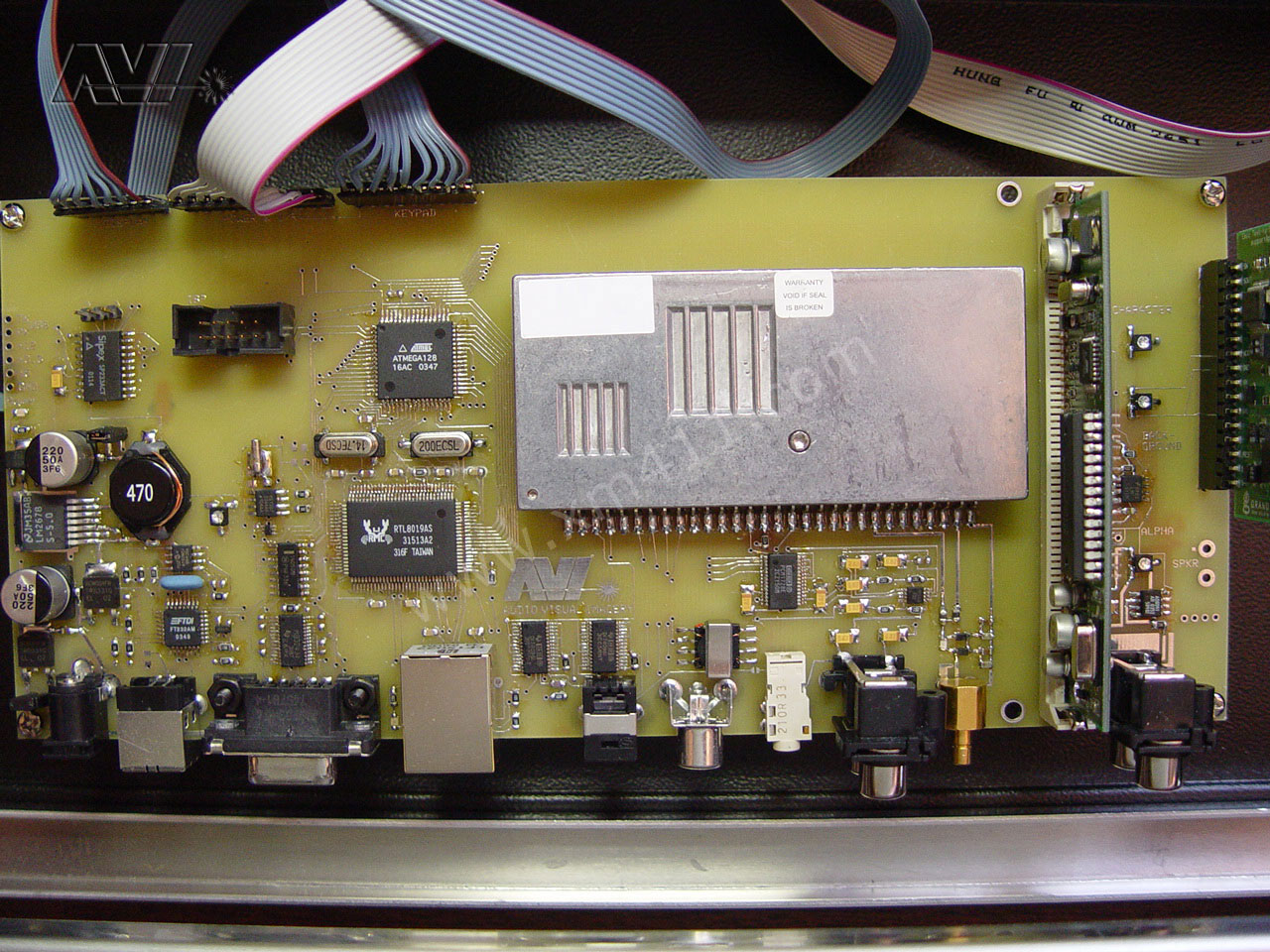

Board close up.

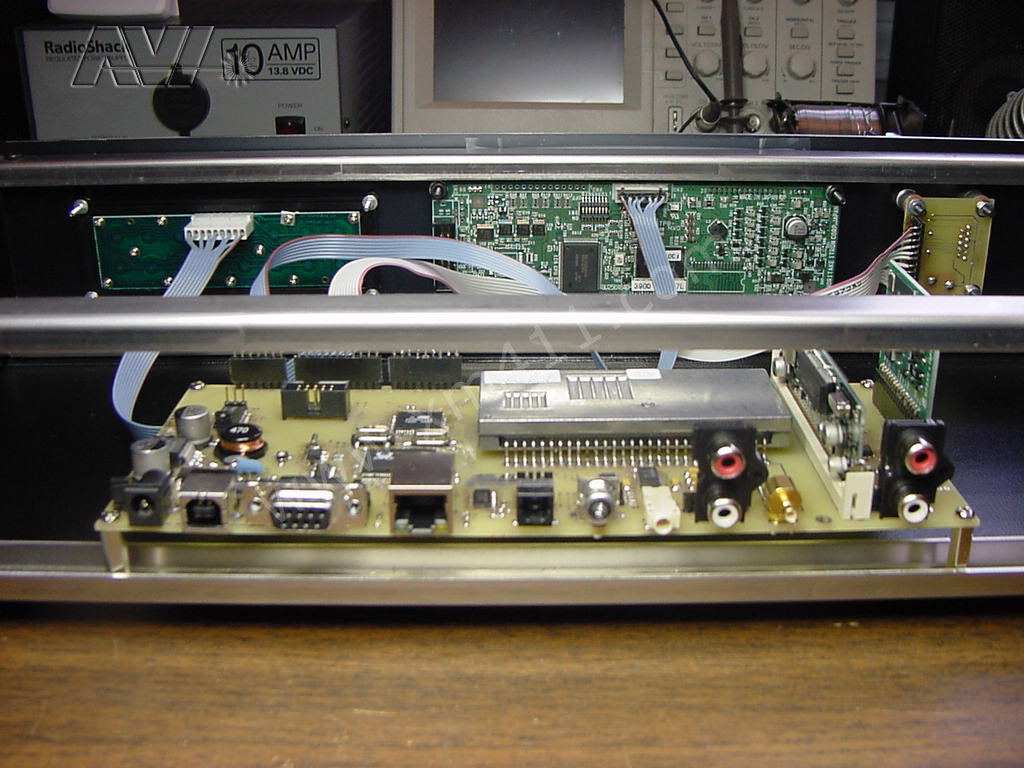

In case, from back.

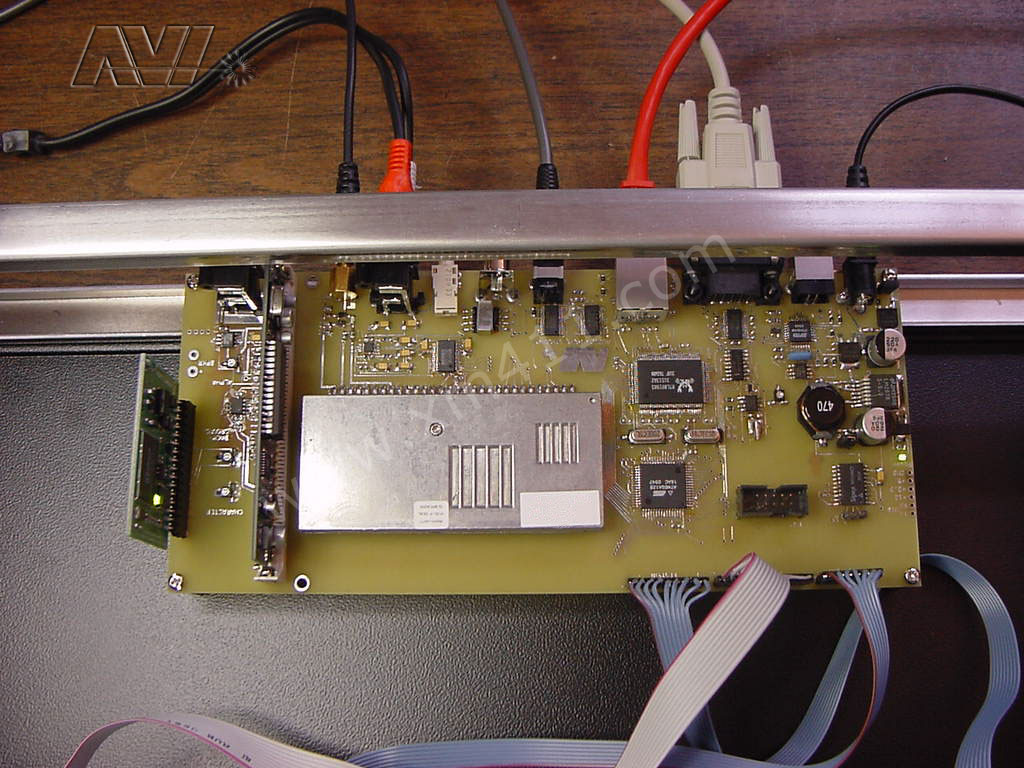

Looking down from above.

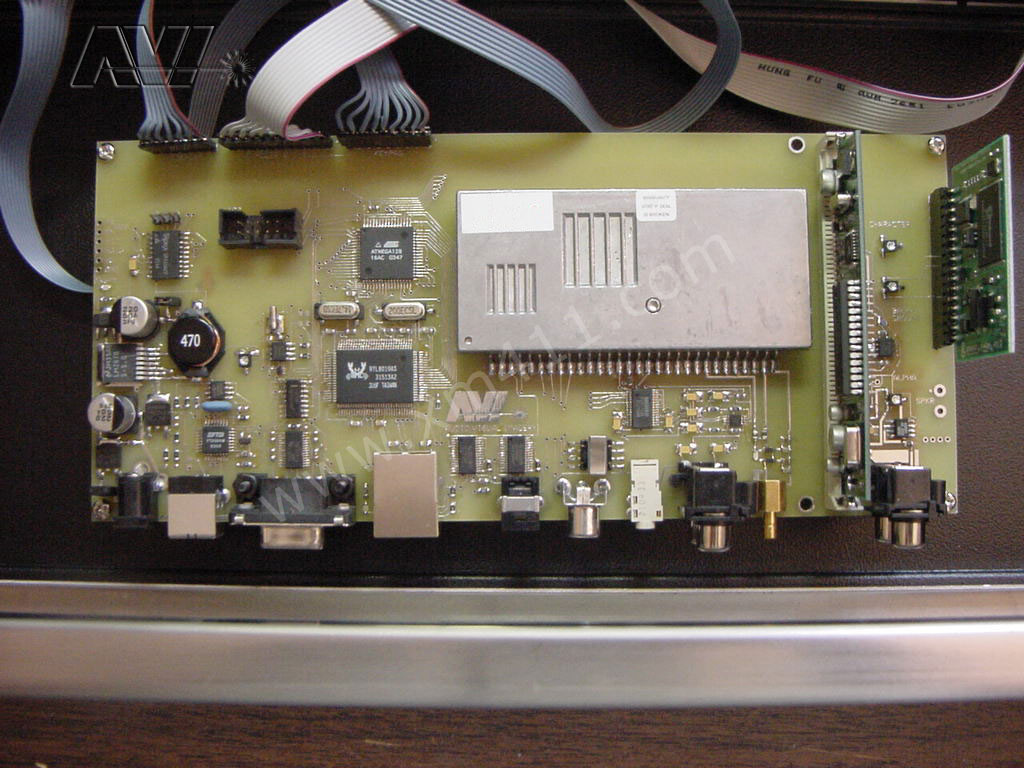

Another picture of PCB.

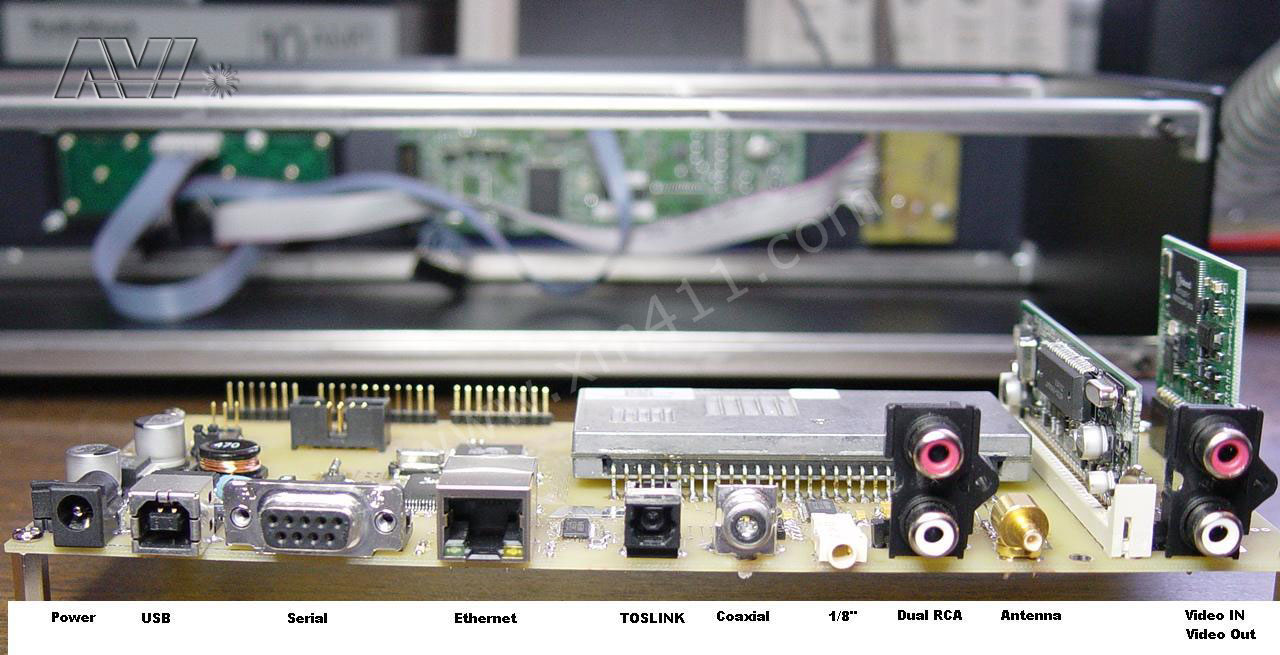

Radio connectors, labeled.

I hope you found this interesting,

ED
